Vigor3100 Series

UK SDSL Setup Parameters

This information is for the Vigor3100 series routers, used on SDSL lines. The Vigor3100 series will not operate on ADSL lines. Check with your ISP for any variations on SDSL setup parameters as these can vary between ISPs, especially when they are using their own DSLAMS as part of LLU. These are the most typical settings:

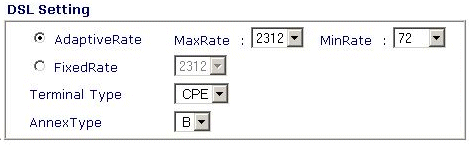

DSL Settings

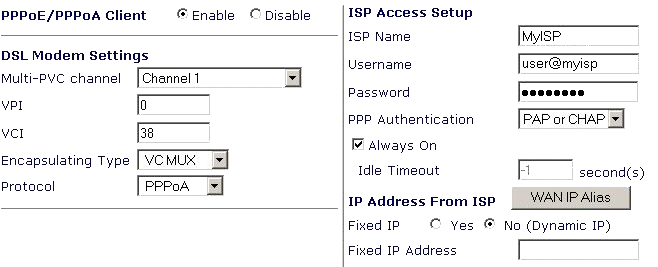

PPPoA Settings


Once online, the 'Online Status' screen confirms the connection
